The right flow meter for every
application

Using the right flow meter for specific applications can significantly improve productivity. This is why we offer a comprehensive selection of electromagnetic and paddlewheel flowmeters. We can provide you with the ideal flowmeters for your industrial and municipal automation applications.

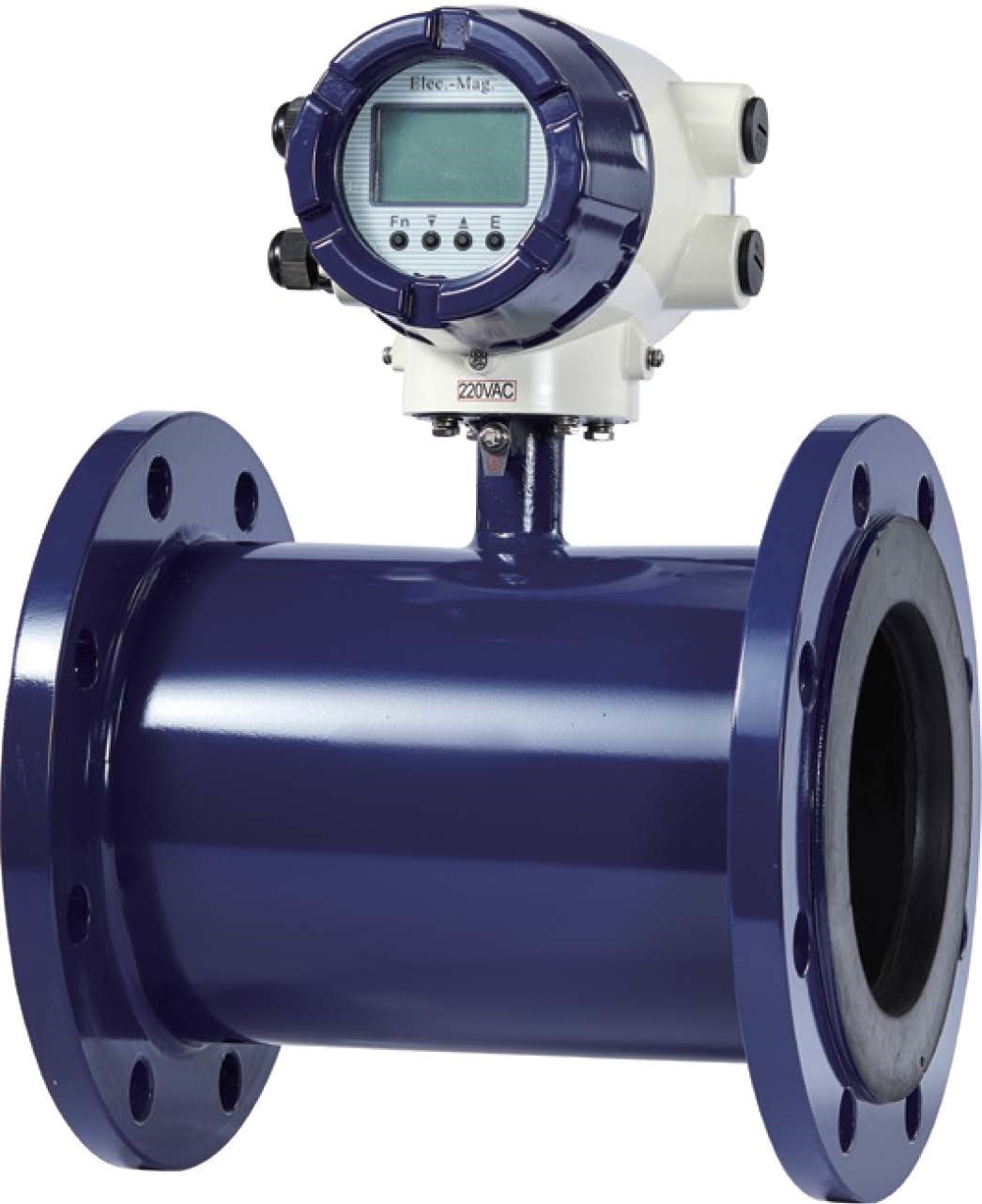

MF2200 Electromagnetic Flowmeter

Description

Controller SIPART DR 24 Lucenline MF2200 series electromagnetic flowmeters feature an advanced four-electrode configuration capable of sufficiently removing electrical noise interference as well as improving measurement precision, stability and reliability. MF2200 is designed to meet the requirements of drinking water, industrial water, waster water, sewage and sludge applications.

Detail

 Nominal size DN15 to DN2000 (1/2” to 78”).
Select different installation fittings for different pipe sizes and materials.
 Liner material Hard rubber and PTFE.
 Electrode material (measuring and grounding) Hastelloy as standard, titanium or tantalum available as alternatives.
 Connection flange material Carbon steel with corrosion-resistant coating; stainless steel flange available as an alternative.
 Flange norm EN 1092-1, DIN 2501, BS 4504, and ANSI B16.5.
 Pressure ratings: PN 40: DN15 to 150 (1/2” to 6”).
PN16: DN65 to 600 (2.5” to 24”).
PN10: DN200 to 600 (8” to 24”).
PN6: DN700 to 2000 (28” to 78”).
 Flow rate 0.01 to 10 m/s.
 Accuracy ±0.5% of the measured value (± 3mm/s when the flow rate is below 0.8m/s).
±0.3% for enhanced models.
 Output 4-20mA, RS485, pulse/frequency; HART and PROFIBUS available as alternative comm. protocols.
 Power supply 100-240VAC，50/60Hz.
 Overall power consumption ＜15W.
 Protection ratings IP67/IP68 for sensors.
IP65 for transmitters.
IP65 for all-in-one models.
Customization required when the distance between sensor and transmitter is more than 30m (100 ft) in split-type installation.
 Ambient temperature range -25 to 60℃ for sensor.
-20 to 60℃ for transmitter.

Benefits

  • Sensor size from DN15 (1/2”) to DN2000 (78”)
  • Advanced four-electrode configuration
  • Self-grounding: doesn’t need an additional grounding ring
  • Hastelloy as the standard measuring and grounding electrode material (upgradeable to titanium or tantalum)
  • Intelligent self-inspection (self-diagnosis) ; reading reset on empty-pipe; alarm feedback
  • Enhanced models are suitable for tough measurement tasks such as sludge and low-conductivity water
  • Enhanced models can improve the measurement accuracy from 0.5% to 0.3%
  • The sensors are designed with high protection rating, guaranteeing performance when buried underground and submerged underwater
